40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel

Name: 40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel
Brand: Formike
Price: 1 USD

Quality 40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel wholesale

Payment Terms : T/T,L/C,Credit card,Cash

Dimensions : 179.40mm x 117.40mm x 5.07mm

Product Name : 40 Pin LCD TFT 7 Inch 800X480 Screen TFT LCD Module Touch Panel

Packaging Details : Partition + A/S Bag + Corrugated Bar + Carton

Display Size : 7-inch

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Operating Temperature : -20°C to 70°C

Brand Name : Formike

Color : Color

Resolution : 800x480

Supply Ability : 5000000000 pieces/year

Viewing Angle : 6 O'Clock

Interface : 40 Pin, 24 BIT RGB

Touch Screen : With capacitive touch panel

Place of Origin : China

Display Type : 7 Inch TFT LCD Panel

Model Number : KWH070ZX44-C01

MOQ : 1 piece

Supply Voltage : 3.3V

Contact Now

40 Pin LCD TFT 7 Inch 800X480 Screen TFT LCD Module Touch Panel

40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel

Product Name	40 Pin LCD TFT 7 Inch 800X480 Screen TFT LCD Module Touch Panel
LCD Size	7 Inch TFT LCD Display Module
Display Mode	Transmissive
Resolution	800x480
Outline Dimension (mm)	179.40x117.40x5.07
Active Area (mm)	154.08x85.92
Dot pitch (mm)	0.1926x0.1790
Viewing Direction	6 O'clock
Interface	24 BIT RGB Interface, 40 Pin
Color Depth	16.7M
Brightness (Cd/m²)	450
Contrast Ratio	500:1
Backlight	21 White LED
Backlight Supply (Current/Voltage)	60mA 21.4V
Touch Screen	With Capacitive Touch Panel

* KWH070ZX44-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel

Product Tags:

LVDS 7 inch capacitive touch screen

TFT 7 inch capacitive touch screen

lvds touch screen Module

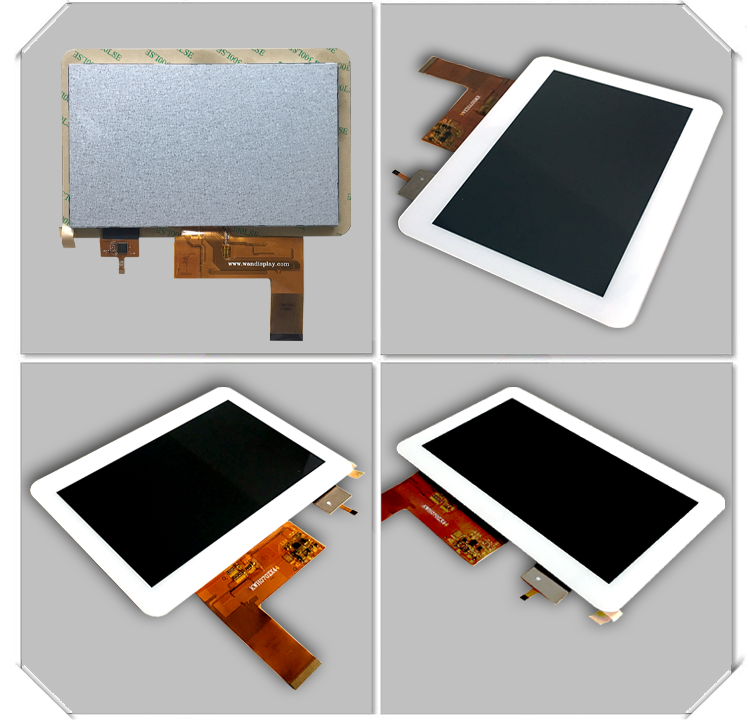

40 Pin LVDS 7 Inch Capacitive Touch Screen 800X480 TFT LCD Module Touch Panel Images
